Description

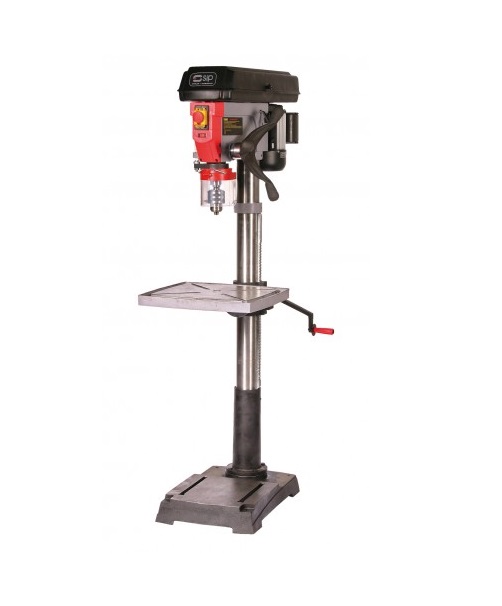

F32-20 Floor Pillar Drill (400v) (floor mounted)

SIP01439

Product Features

Magnetic NVR switch Aluminium motor housing trudy cast iron table with slots Easy lock motor adjustment Integral light option (see table) – bulb not supplied

• SUPPLY: 400v
• MOTOR: 1.1kW
• TYPE: Floor
• SPINDLE TAPER: MT3
• SPEED RANGE: 200 – 1990rpm
• SPEEDS: 12
• CHUCK CAPACITY: 20mm
• DRILLING CAPACITY: (steel) 32mm
• MAX. SPINDLE STROKE: 120mm
• SWING: 515mm
• INTEGRAL LIGHT: Yes*
• NET WEIGHT: 129kg
• GROSS WEIGHT:135kg
• PACKAGED DIMENSIONS(HxWxL): 1150 x 643 x 310mm (box 1) 650 x 518 x 313mm (box 2) *bulb not supplied
